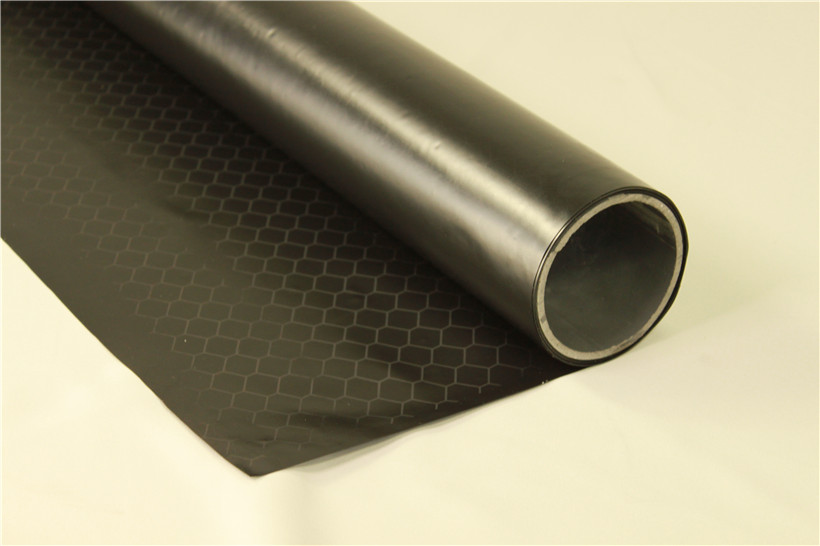

Product Name: Anti-static Full Black Grid Curtain
Product Model: CN-2065B
Size: 30（length）m/roll×137（width）cm×0.3(thickness）mm
‚30（length）m/roll×137（width）cm×0.5((thickness）mm
Material：PVC
Surface Resistance: Front: 104Ω-106Ω Back: 109Ω-1011Ω
Technical parameters of the anti-static curtain
|
Item |
Unit |
Numerical Value |
Comment |
||
|
Thermal resistance
|
% |
5 |
80℃Fire point |
||
|
Elongation |
% |
ＭＤ |
１７０ |
Reach to ASTM D-882 American companies demonstrate
|
|
|
ＴＤ |
２１０ |
||||
|
Fireproofing |
|
Pass |
Reach to A-1322 Japanese Industrial Standard |
||
|
Density100% |
ＫＧ／ｍｍ２ |
ＭＤ |
1.1 |
Reach to ASTM D-882 American companies demonstrate |
|
|
ＴＤ |
1.8 |
||||
|
Extension Effects |
ＫＧ／ｍｍ２ |
ＭＤ |
1.8 |
Reach to ASTM D-882 American companies demonstrate |
|
|
ＴＤ |
1.8 |
||||
|
Electrostatic Recession |
Sec |
0.5 |
5000V~500v |
||
|
Electrostatic Pressure |
V |
Surface |
100 |
|
|
|
Reverse Side |
200 |
||||
|
Surface Resistance |
Ω/sqmt |
Surface |
109Ω~1011Ω |
Reach to ASTM D-882 American companies demonstrate |
|
|
Reverse Side |
109Ω~1011Ω |
||||
|
Range of Application
|
Clean room |
||||
|
laminar flow covering, the window of the clean room. |
|||||
