EM-T01 SERIES ZOOM STEREO MICROSCOPES
writer:admin  time:2016-03-09 10:15:00  source:未知  hit:

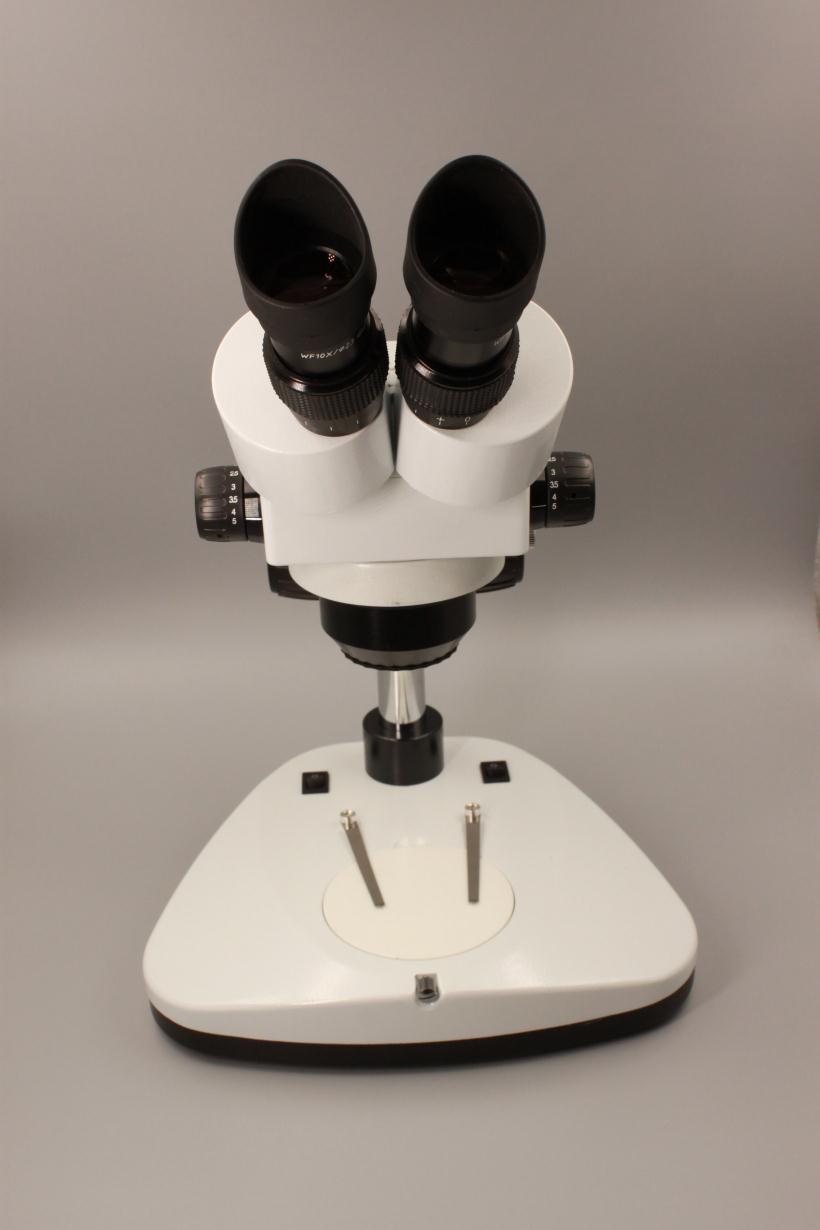

EM-T01 SERIES ZOOM STEREO MICROSCOPES

The instrument is a kind of binocular or trinocular stereo microscopes which can zoom magnify the micro object and get an erect image. It can be used for educational experiment, medical research, agricultural observation, science research and also for assembling and repairing in electronic industry and other relative fields.

Features:

◆ sharp stereo erect image over a wide field of view

◆ 45° inclined and 360° rotatable binocular head

◆ The interpupillary distance is between 55-75㎜. Both ocular-tube with diopter adjustment ±5dp

◆ Power supply 90V-240V



 SPECIFICATION


 Model


 Eyepiece


 Objective


 Base/Working Stage


 Up＆down Mechanism


 lncident illumination


 Transmitted illumination















EM-T0103

HWF10×

ZOOM 0.75×-5×


Ø95㎜ Frosted glass


Pillar style


Bowl halogen lamp 12V10W


halogen lamp 12V10W

EM-T0102

HWF10×

ZOOM 0.75×-5×


Ø95㎜ Frosted glass


Arm curved


Bowl halogen lamp 12V10W

halogen lamp 12V10W

EM-T0101

HWF10×

ZOOM 0.75×-5×


Ø95㎜ Frosted glass


Arm curved


Bult-in LED ring light


1WLED lamp

EM-T0104

HWF10×

ZOOM 0.75×-5×


Ø120㎜ White/black


Pillar style


Natural illumination


Natural illumination

Optional accessories：0.5×，1.5×，2×Auxiliary Objective；HWF5×、HWF10×、HWF15×、HWF20×、HWF25×Eyepiece；ring light



◆ Product has CE approval





Eyepiece


Main body

Objective
With 0.5×auxi objective


With 1.5×auxi objective


With 2×auxi objective

0.75×-5×

0.375×-2.5×

1.125×-7.5×

1.5×-10×

HWF5×

 Total magnification

3.75×-25×

1.875×-12.5×

5.625×-37.5×

7.5×-50×

 Field of View

Ø31-Ø4.6

Ø61.3-Ø9.2

Ø22-Ø3.3

Ø16-Ø2.5

HWF10×

 Total magnification

7.5×-50×

3.75×-25×

11.25×-75×

15×-100×

 Field of View

Ø33-Ø5

Ø65-Ø10

Ø22-Ø3.3

Ø16-Ø2.5

HWF15×

 Total magnification

11.25×-75×

5.625×-37.5×

16.875×-112.5×

22.5×-150×

Field of View

Ø24-Ø4.2

Ø48-Ø8.5

Ø16-Ø2.8

Ø12-Ø2

HWF20×

Total magnification

15×-100×

7.5×-50×

22.5×-150×

30×-200×

 Field of View

Ø20-Ø3.5

Ø40-Ø7

Ø13.3-Ø2.3

Ø10-Ø1.8

HWF25×

 Total magnification

18.75×-125×

9.375×-62.5×

28.125×-187.5×

37.5×-255×

 Field of View

Ø15.8-Ø2.4

Ø31.5-Ø4.8

Ø10.5-Ø1.6

Ø7.9-Ø1.2



 Working distance

113㎜

220㎜

50㎜

35㎜


 SPECIFICATION LIST

 Specification list

 SPECIFICATION

EM-T0103

EM-T0101

EM-T0105

EM-T0106

  Viewing Head

 Inclined Binocular Head

●

●

●

●

 Head 360℃ Rotatable

●

●

●

●

 Eyepiece

HWF5☓

○

○

○

○

HWF10☓

●

●

●

●

HWF15☓

○

○

○

○

HWF20☓

○

○

○

○

HWF25☓

○

○

○

○

 Objective

 Zoom 0.75☓-5☓

●

●





 Zoom 0.75☓-6☓

●

●

Focus Adjustment System

Flutter

●

●

●

●

Flutter Coaxial Coarse

○

○

 lncident Light

12V10W halogen lamp

●

○

●

●

LED ring light

○

●

○

○

LED lamp

○

○

○

○

 Transmitted Light

12V10W  halogen lamp

●

○

●

●

 LED lamp  (3.2V60mA)

○

●

○

○

Brightness adjustable system

●

●

●

●

MEMO●Standard 　○ Optional
