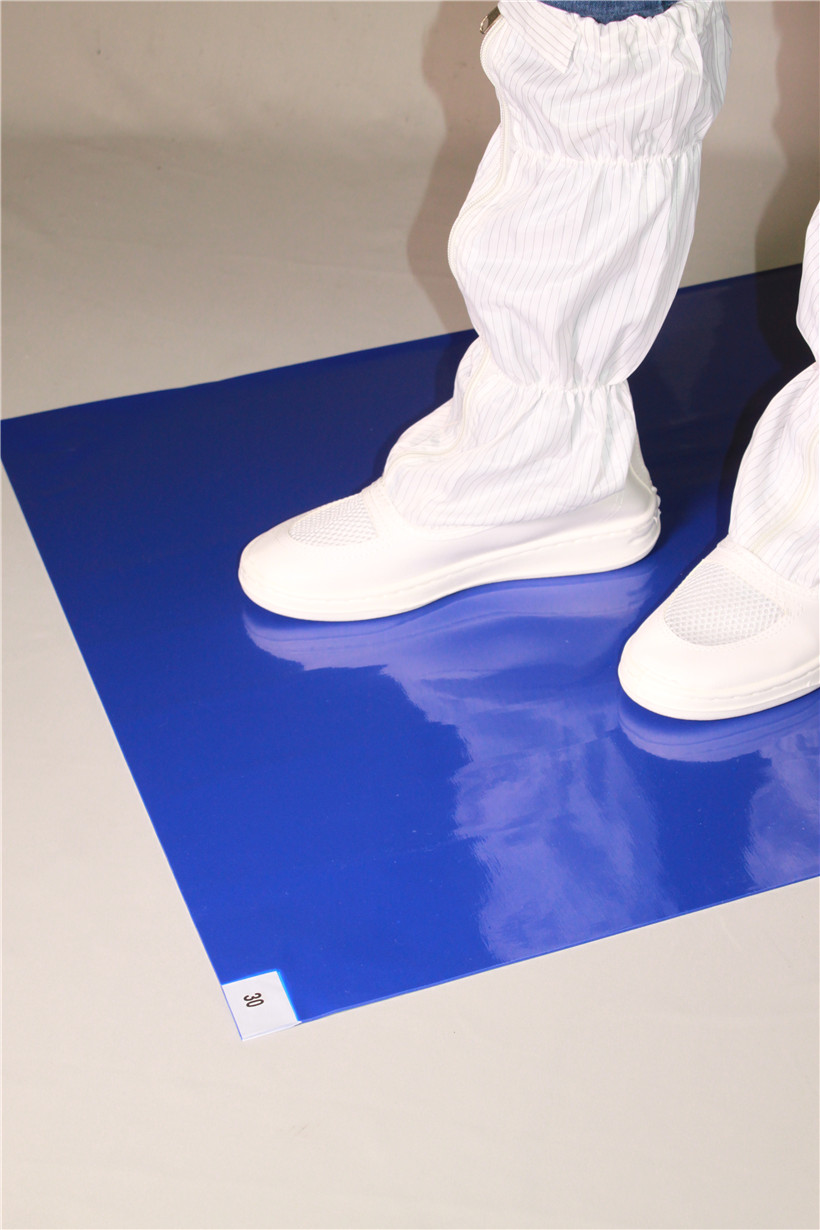

Product Name：Sticky mat
Product No：CN-2059A
|
Specification |
24“×36” |
26“×45” |
|
Packaging |
30 piece/copy×10 copy/box |
30piece/copy×10 copy/box |
|
Color |
blue/copy |
blue/copy |
Sticky Mat Technology Standard
|
Physical properties |
Test method |
Test result |
|
|
Material（thin film） |
|
LDPE |
|
|
Thickness of film /page（um） |
|
50um |
|
|
adhesive |
|
water-borne acrylic |
|
|
thickness of adhesive layer （um） |
|
5~7 |
|
|
proportion（g/cm） |
ASTMD-792 |
1.05 |
|
|
Tensile strength（kg/10mm） |
ASTMD-792 |
＞1.2 |
|
|
TackBallNo（g/25mm） |
GB4852-84 |
350 |
|
|
strip force （g/25mm） |
GB2792-81 |
single layer
|
high viscosity：500 |
|
Middle viscosity：450 |
|||
|
Low viscosity：350 |
|||
|
bottom layer=700 |
|||
|
heat resistance |
70℃、48h |
Pass |
|
|
cold resistance |
0℃、48h |
Pass |
|
|
surface resistance |
GB12158-90 |
109~1011Ω |
|
|
|
|
|
|
|
Chemical Properties |
|
Test result |
|
|
Toluene （g/100m） |
testing standard HJBZ 4-1999 |
0 |
|
|
Xylene（g/100m） |
＜10 |
0 |
|
|
Other organic compositionVOC （g/100m） |
＜10 |
1.12 |
|
|
Formaldehyde（mg/kg） |
＜250 |
19 |
|
|
Heavy Metal （mg/kg） |
＜500 |
Cr Not detected |
|
|
Cd Not detected |
|||
|
Hg Not detected |
|||
|
Pb Not detected
|
|||
